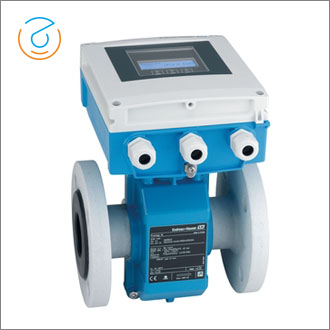

Versatile standard flowmeter for the water and wastewater industry.

Reliable measurement at constant accuracy with 0 x DN inlet run and no pressure loss.

Ideal for water measurement, e.g. drinking water, utility water and industrial/municipal wastewater.

Flexible engineering – sensor with fixed or lap-joint process connections. Application fitness – EN ISO 12944 corrosion protection for underground or underwater installation. Improved plant availability – sensor compliant with industry-specific requirements.

International drinking water approvals. Degree of protection IP68 (Type 6P enclosure). Approved for custody transfer to MI-001/OIML R49.

Safe operation – no need to open the device due to display with touch control, background lighting. Time‐saving local operation without additional software and hardware – integrated web server. Integrated verification – Heartbeat Technology.

Transmitter housing made of durable polycarbonate or aluminium. WLAN access. Integrated data logger: measured values monitoring.

內襯：聚氨酯、硬橡膠

電極：1.4435 (316L)、Alloy C22 2.4602 (UNS N06022)合金、鉭

體積流量（標準）：±0.5 % o.r. ± 1 mm/s (0.04 in/s)

體積流量（可選）：±0.2 % o.r. ± 2 mm/s (0.08 in/s)

硬橡膠內襯：0...+80 °C (+32...+176 °F)

聚氨酯內襯：–20...+50 °C (–4...+122 °F)

硬橡膠內襯：0...+80 °C (+32...+176 °F)

聚氨酯內襯：–20...+50 °C (–4...+122 °F)

DN 25...300 (1...12")：鋁合金AlSi10Mg涂層

DN 25...2000 (1...78")：碳鋼，帶保護漆涂層

傳感器接線盒（標準）：鋁合金AlSi10Mg涂層

傳感器接線盒（可選）：聚碳酸

一體式：IP66/67，Type 4X

分體式傳感器（標準）：IP66/67，Type 4X

分體式傳感器（可選）：IP68，Type 6P，帶保護漆

符合EN ISO 12944 C5‐M/Im1/Im2/Im3標準

分體式變送器：IP66/67，Type 4X

四行背光顯示，觸摸鍵操作（外部操作）

通過現場顯示單元和調試軟件設置

3路輸出：

0...20 mA / 4...20 mA HART（有源）

脈沖/頻率/開關量輸出（無源）

脈沖/頻率輸出（無源）

開關量輸出（無源）

在認證標定裝置上執行標定（符合ISO/IEC 17025標準） ，NAMUR計量交接認證符合MI‐001或OIM
